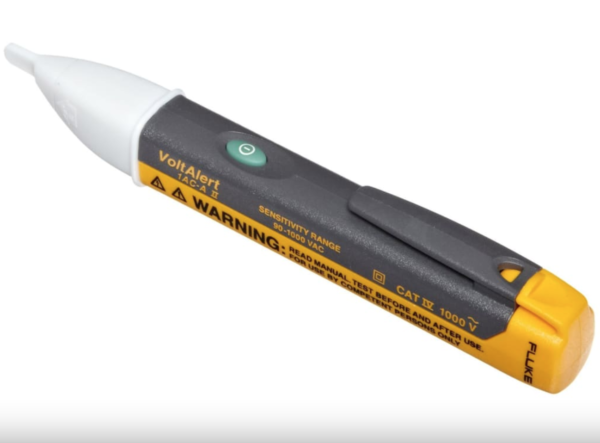

FLUKE 1LAC-A-II Non-Contact Low Voltage Detector
$32.49
The pocket-sized voltage detector
- Description
- Reviews (0)
- More Products
Description
The pocket-sized voltage detector
The next generation VoltAlert™ AC non-contact voltage testers from Fluke is easy to use – just touch the tip to a terminal strip, outlet, or supply cord. When the tip glows red and the unit beeps, you know there’s voltage present. Electricians, maintenance, service, safety personnel, and homeowners can quickly test for energized circuits in the workplace or at home.
Product Features
- Voltbeat™ technology and continuous self-test – so you always know it’s working
- Upon detection, tip glows and beeper sounds
- CAT IV 1000 V for added protection
- Expanded range: 90 V AC to 1000 V AC
- 20 V to 90 V AC control circuit model also available
- Two-year warranty
- Batteries included
- On/Off Button
- Audible/Silent
Specifications
- Operating Principles Senses the steady state electrostatic field produced by AC voltage through insulation without requiring contact to the bare conductor. A red glow at the tip and a beeping noise (if not switched OFF) indicates the presence of voltage.
- Voltage sensing ranges
- 20 V to 90 V control circuit model
- Detector tip style
- Round-tip
- Light source
- One high intensity red LED
- Agency Approvals
- c CSA us, CE, C-Tick
- Safety Rating
- 1000 V, CAT IV
- Safety Compliance
- Meets IEC 61010-1:2001, UL 61010-1 (2nd ed.), CAN/CSA-C22.2 No. 61010-1-04, and ISA-82.02.01 Pollution Degree 2
- EMC Compliance
- Meets IEC 61326-1:2006
- IP Rating
- IP 40
- Operating Temperature
- -10°C to 50°C (-14°F to 122°F)
- Operating Humidity Ranges
- 0% to 95% (0°C to 30°C)
- 0% to 75% (30°C to 40°C)
- 0% to 45% (40 to 55°C)
- Operating Altitude
- 3000 m
- Cleaning
- Clean with damp cloth
- Batteries
- 2 AAA alkaline batteries included
- Battery Life
- Typical battery life of greater than 1 year
- Warranty Period
- Two years
- Product does not respond to random electrostatic discharge.
Be the first to review “FLUKE 1LAC-A-II Non-Contact Low Voltage Detector”
-
Capacitors, HVAC PartsAmrad Engineering Round Motor Run Capacitor 40+5 MFD 370/440 VAC
There is no AI review summary. -
Accessories, Power Tools, Saw Blades, ToolsDiablo D1012LF 10 in. x 12 Tooth Laminate Flooring
$106.66There is no AI review summary. -
Hand Tools, Pipe & Tubing Tools, Pipe and Tubing Cutter, ToolsYellow Jacket 60102 Large Premium Tube Cutter for 1/4″ TO 1-5/8″ O.D. Tubing
$44.79There is no AI review summary. -
Bathroom and AC Exhaust Fans, VentilationPanasonic FV-07BA1A WhisperGreen® Select™ Fan, 50-80-110 CFM, Multi-Speed
$26.50There is no AI review summary. -

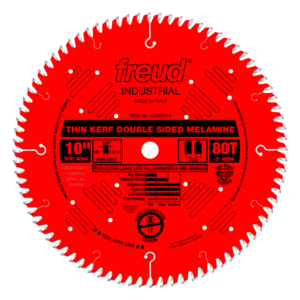

Accessories, Power Tools, Saw Blades, ToolsFreud LU96R010 10″ Thin Kerf Double Sided Laminate/Melamine
